Yesterday, we discussed the mitigation of electromagnetic interference (EMI) and transient voltage flyback in high-density control cabinets, emphasizing the necessity of surge suppression and signal isolation for noise-immune performance. Today, we shift our perspective from physical electrical hardening to Data-Driven Reliability, focusing on the integration of 2-way solenoid valves into modern Industrial Internet of Things (IIoT) and Digital Twin frameworks.

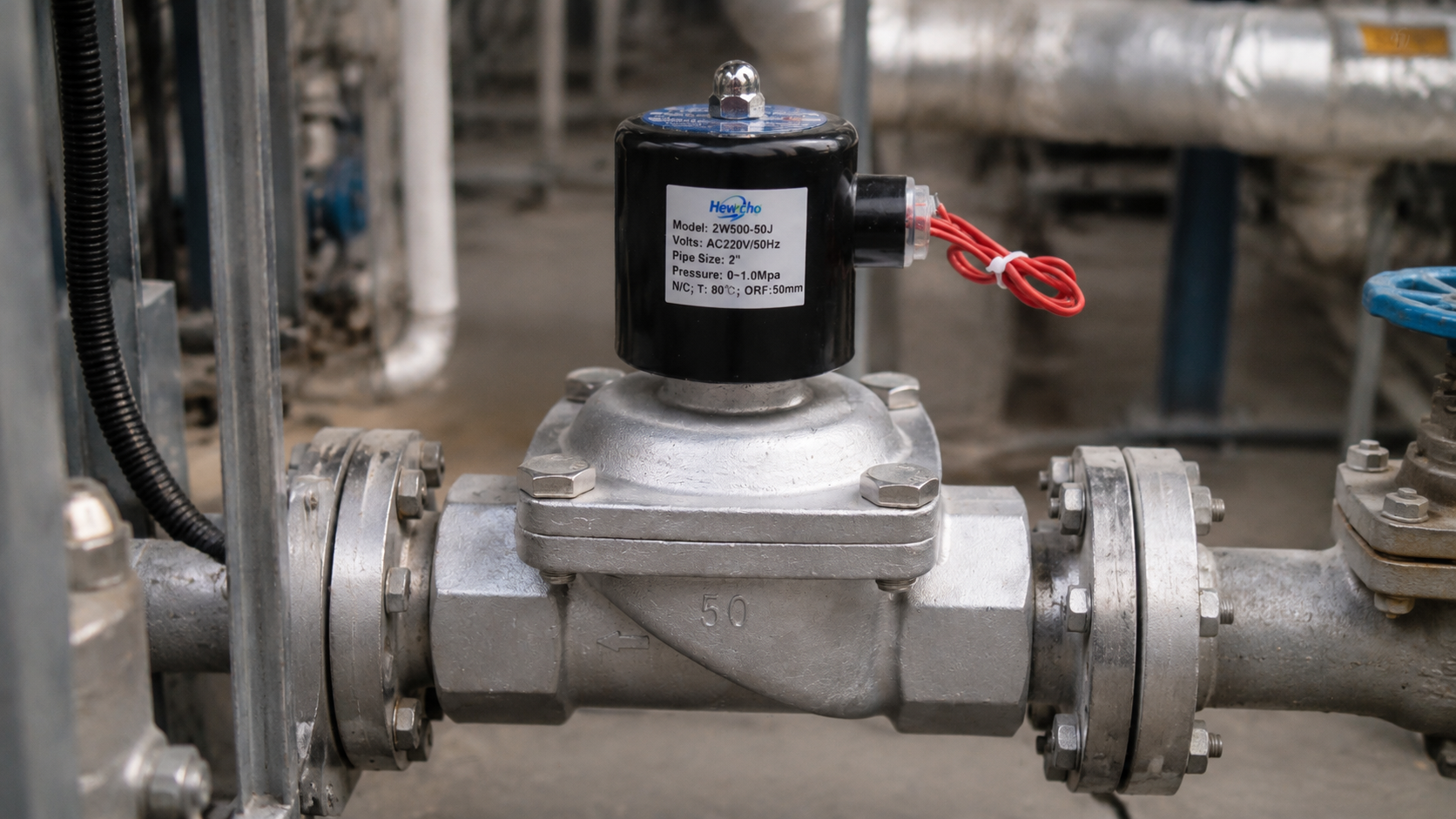

As process industries transition toward “Industry 4.0,” the 2-way solenoid valve is evolving from a simple mechanical switch into a critical data node. By deploying “smart” solenoid architectures, reliability engineers can now monitor valve health in real-time, moving from reactive maintenance to proactive, predictive failure analysis.
1. The Digital Twin Concept for Fluid Actuators
A Digital Twin is a dynamic, virtual replica of a physical asset. For a 2-way solenoid valve, the Digital Twin integrates real-time telemetry (current, temperature, cycle count, and pressure signatures) to mirror the valve’s internal state.
The core objective is to create a “Health Score” for the valve. By comparing the live telemetry data against the physical model’s expected behavior, the controller can identify anomalies—such as a sluggish plunger or an internal seat leak—long before the process output deviates from specifications.
2. Key Telemetry Nodes for Remote Diagnostics
To build an effective Digital Twin for a 2-way solenoid valve, engineers monitor four specific high-resolution data streams:
Coil Impedance Tracking
Instead of periodic multimeter testing, modern IIoT drivers continuously monitor the coil’s electrical resistance. By normalizing the resistance against ambient temperature fluctuations, the system detects the early stages of inter-turn shorts. A subtle, permanent shift in resistance provides the earliest possible warning of insulation degradation, weeks before a coil burnout occurs.
Actuation Latency (Time-to-Open)
High-precision valves integrated with Hall Effect sensors on the armature assembly can measure the exact duration between the command signal and the physical movement of the plunger.
- The Diagnostic Value: Any trend showing an increase in “Time-to-Open” (e.g., from 15.2\text{ ms} to 18.5\text{ ms}) is a direct indicator of friction-induced stiction or viscous silt-lock, allowing the maintenance team to schedule a cleaning cycle during a planned production lull.
Power Signature Analysis (PSA)
During the “hit-and-hold” actuation phase, the controller captures the high-resolution current waveform of the solenoid.
- The Diagnostic Value: The “inrush peak” and “holding valley” are unique signatures. If the plunger encounters mechanical resistance (like internal debris), the current profile shape will distort. Advanced diagnostic algorithms perform a Fast Fourier Transform (FFT) on this current profile to identify mechanical vibrations or internal “chatter” that are invisible to the naked eye.
3. IIoT Integration and Cloud-Based Predictive Analytics
The final step in this diagnostic architecture is the bridge between the PLC/Edge Controller and cloud-based analytics. Modern “Smart Solenoids” utilize industrial protocols—such as IO-Link or OPC-UA—to broadcast health packets to the facility’s central server.
Why this matters:
- Fleet-Wide Benchmarking: A plant may contain hundreds of 2-way valves. Cloud analytics can compare the performance of valves across the entire facility. If 10 valves in the same process area all show a simultaneous trend toward increased latency, the engineer can identify a common issue (e.g., contaminated air supply or degraded fluid quality) rather than treating it as a random component failure.
- Remaining Useful Life (RUL) Prediction: Using machine learning, the system estimates the “Remaining Useful Life” of the valve’s seals and springs. By the time a valve reaches 90\% of its predicted life, the system automatically triggers a procurement request for the specific repair kit, ensuring zero downtime.
Technical Sourcing Specs for IIoT-Ready Solenoid Valves
When procuring 2-way valves for smart, connected manufacturing environments, enforce the following IIoT integration standards:
| Performance Metric | Sourcing Requirement | Reliability Justification |
|---|---|---|
| Communication Protocol | IO-Link (V1.1+) | Enables bi-directional data exchange; allows remote parameterization and diagnostic reporting. |
| Integrated Sensing | Armature Position / Stroke Sensing | Provides real-time confirmation of valve state and direct measurement of actuation latency. |
| Diagnostic Processing | Edge-Level Data Aggregation | Reduces bandwidth by calculating health metrics at the valve level before sending to the cloud. |
Conclusion
The future of 2-way solenoid valve control lies in the transition from mechanical binary switching to granular, predictive telemetry. By embedding sensors, tracking power signatures, and integrating valve data into a Digital Twin, you eliminate the “hidden failure” modes that plague standard industrial pipelines. This integration transforms your fluid automation network into a transparent, self-aware system that alerts you to mechanical distress before it ever impacts your production yield—ensuring maximum uptime and intelligent resource management.
