Yesterday, we investigated the complex fluid dynamics of cryogenic flow control, analyzing how austenitic metallurgy, extended thermal-break bonnets, and spring-energized PCTFE seals prevent structural brittleness and thermal seizure in extreme low-temperature environments. Today, we turn our attention to the final frontier of maintenance and reliability: Acoustic Leak Diagnosis in High-Pressure 2-Way Solenoid Valves.

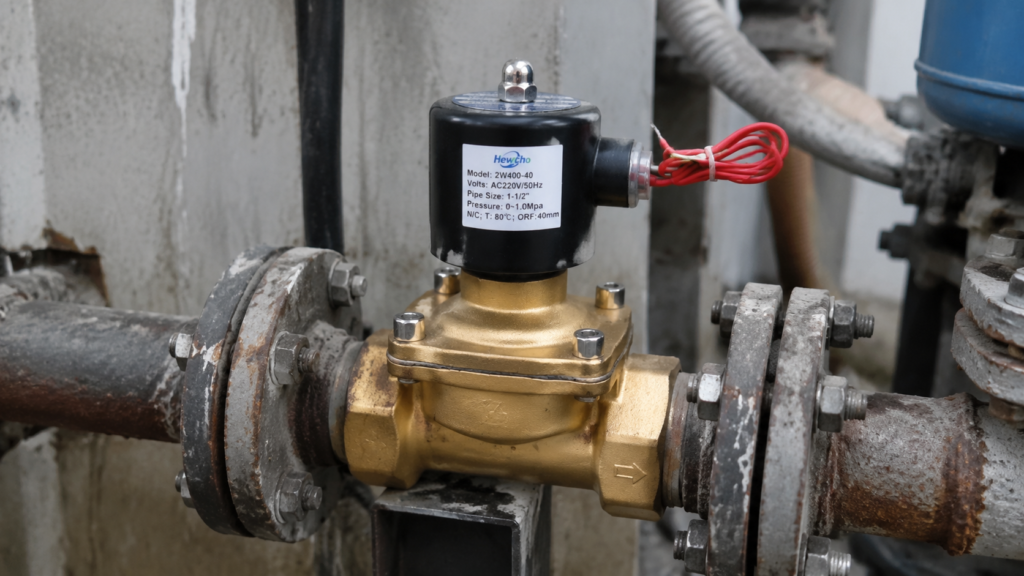

In high-pressure gas distribution and volatile chemical skids, an internal seat leak in a 2-way solenoid valve is frequently invisible. Even a “bubble-tight” seal can degrade over time due to micro-pitting, thermal cycling, or particulate erosion, leading to slow, hazardous media migration into downstream components. Standard pressure-drop testing often lacks the sensitivity to detect these micro-seepage failures until they escalate into critical safety incidents. To combat this, reliability engineers are increasingly adopting Ultrasonic Leak Detection as a non-invasive, predictive diagnostic tool.
1. The Physics of High-Frequency Acoustic Emissions
When a 2-way solenoid valve experiences internal seat bypass, the fluid is forced through the microscopic leakage channel at high velocity. As this fluid transitions from high pressure (P_1) to low pressure (P_2), it creates severe localized turbulence and generates high-frequency acoustic emissions, typically falling in the 20 kHz to 100 kHz range.
These ultrasonic waves are far above the human hearing range and are largely immune to background industrial noise (such as motor hum, pump vibration, or ventilation fans, which usually hover below 5 kHz). By utilizing an ultrasonic sensor focused directly on the valve seat boundary, engineers can isolate the distinct “hiss” of a failing seal long before it registers on a standard process pressure gauge.
2. Quantitative Diagnostic Protocol: The Decibel Shift
Ultrasonic leak detection is not merely qualitative; it provides a rigorous quantitative metric for assessing valve health. Reliability teams establish a baseline measurement for every critical valve during the commissioning phase.
The Diagnostic Routine:
- Baseline Establishment: When the valve is brand new and verified as bubble-tight, technicians use an ultrasonic contact probe to measure the acoustic intensity (dB\mu V) at a designated contact point on the valve body.
- Trend Analysis: During routine maintenance routes, technicians re-measure the acoustic intensity at the exact same physical coordinates.
- Threshold Triggering:
- \Delta < 5\text{ dB}: Normal operational noise and background flow turbulence.
- \Delta 6\text{ dB} – 15\text{ dB}: Indicates early-stage “micro-seepage” due to initial seat wire-drawing or elastomer hardening. The valve should be scheduled for inspection in the next planned maintenance window.
- \Delta > 20\text{ dB}: Confirms a significant internal leak path. Immediate isolation and replacement are required to prevent hazardous gas escape or process contamination.
3. Integrating Acoustic Sensors for Permanent Monitoring
For critical safety loops (such as hydrogen refueling networks or medical oxygen enrichment skids), manual ultrasonic testing is increasingly being replaced by Permanent Acoustic Emission (AE) Sensors.
These miniature piezo-electric transducers are permanently bonded to a machined boss on the valve body, feeding a continuous stream of data to an edge-processing unit.
- Real-Time Signature Matching: The unit automatically filters out the mechanical “click” of the valve actuating, isolating only the persistent, high-frequency turbulence signature of a leaking seat.
- Automated Emergency Shutdown (ESD): By automating acoustic detection, the control system can trigger an immediate ESD interlock if a seal fails, preventing the hazardous accumulation of combustible or toxic media in downstream process zones.
Technical Sourcing Specs for Acoustic-Ready Valves
When specifying 2-way solenoid valves for remote or safety-critical monitoring environments, include these acoustic diagnostic provisions in your procurement guidelines:
| Diagnostic Variable | Sourcing Requirement | Reliability Justification |
|---|---|---|
| Acoustic Contact Surface | Precision-Machined Boss / Flat Spot | Ensures repeatable placement of the ultrasonic probe, essential for accurate trend analysis. |
| Body Material Hardness | Consistent Metallurgy (e.g., Forged 316L SS) | Ensures acoustic wave propagation velocity remains constant across the entire fleet of valves. |
| Digital Integration | Edge-Processing AE Transducer Ports | Allows permanent mounting of piezoelectric sensors for real-time condition monitoring. |
Conclusion
Acoustic diagnosis represents the final step in transitioning from periodic maintenance to true “Condition-Based Monitoring.” By leveraging the high-frequency turbulence signatures of seat-leakage, you bypass the limitations of pressure-drop analysis and visual inspection. This technique empowers maintenance teams to identify and replace degraded 2-way solenoid valves with surgical precision, ensuring the safety, compliance, and efficiency of your fluid control infrastructure without unnecessary downtime.
