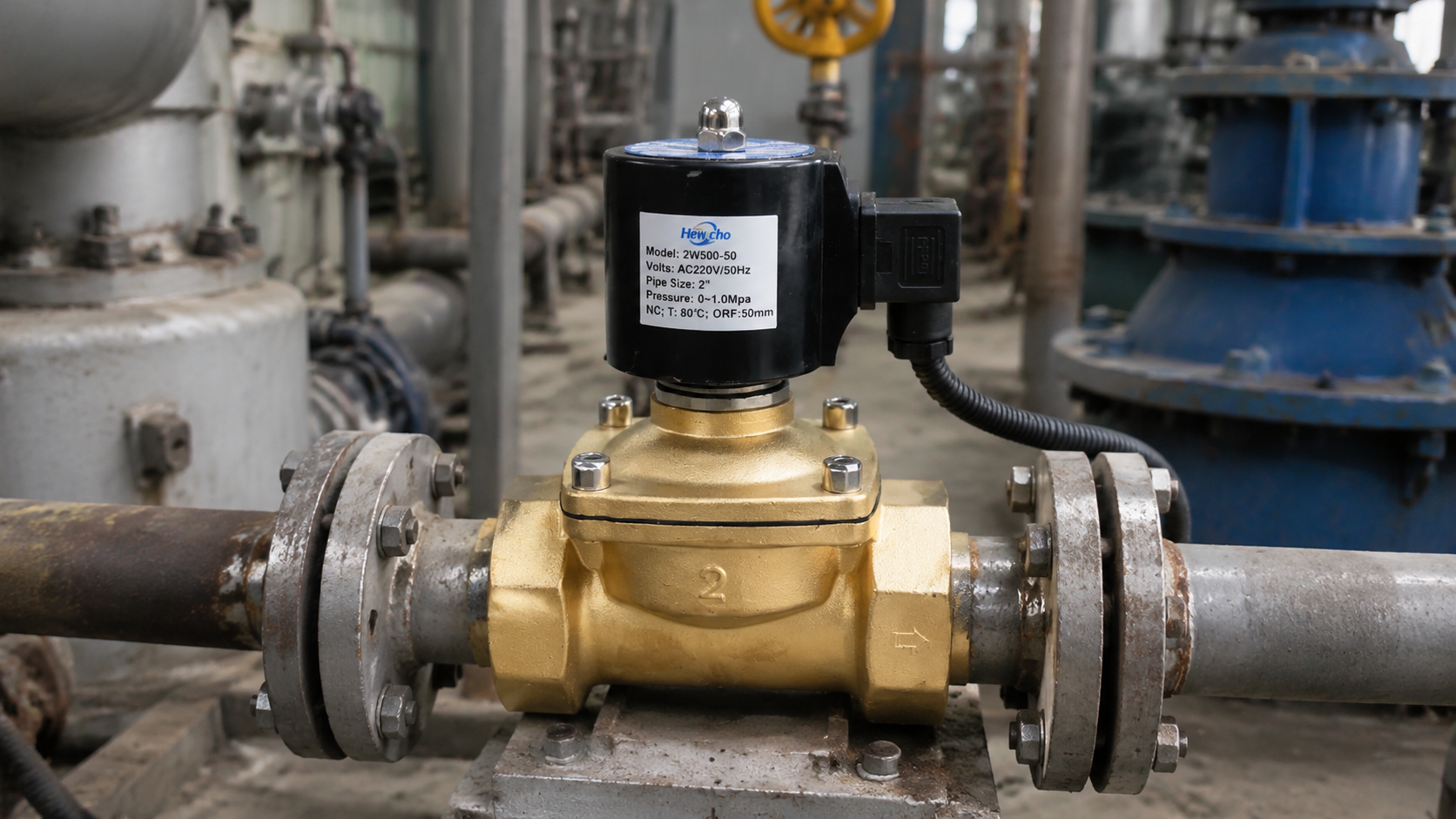

Yesterday, we discussed the mitigation of electromagnetic interference (EMI) and transient voltage flyback in high-density control cabinets, emphasizing the necessity of surge suppression and signal isolation for noise-immune performance. Today, we shift our perspective from electrical architecture to the exacting metallurgical and micro-finishing requirements of High-Purity and Ultra-Clean Fluid Control in 2-Way Solenoid Valves.
In semiconductor manufacturing (such as ultra-pure water loops and specialty gas delivery skids), pharmaceutical water-for-injection (WFI) systems, and bioprocessing cleanrooms, a 2-way solenoid valve cannot simply resist chemical corrosion or mechanical wear. It must prevent microbial growth, eliminate particle shedding, and withstand aggressive sterilization cycles (SIP/CIP). Specifying the correct surface finish, internal dead-leg elimination, and elastomer purity is critical to maintaining total process integrity.
1. The Physics of Surface Asperities and Microbial Harboring
In standard industrial applications, a stainless steel valve body with a standard machined finish (R_a \approx 0.8\ \mu\text{m} to 1.6\ \mu\text{m}) is completely acceptable. However, at a microscopic level, these standard surfaces are a rugged landscape of deep valleys and jagged peaks (asperities).
In ultra-clean fluid systems, these microscopic asperities act as permanent trapping zones for organic matter, mineral crystals, and bacteria.
- Bacterial Biofilm Formation: Micro-organisms settle into the surface valleys where local fluid velocity drops to zero. Protected from the scouring action of the cleaning fluid, they multiply and form a biofilm that continuously leaches contaminants back into the process stream.
- Particle Shedding: Mechanical friction from the plunger or fluid flow can break off microscopic metal burrs from rough surfaces, contaminating semiconductor wafers or sterile pharmaceutical batches.
To eliminate these risks, ultra-clean 2-way valves undergo mechanical grinding followed by electropolishing, a controlled electrochemical dissolution process that selectively dissolves microscopic peaks, yielding a mirror-like finish with an R_a \le 0.25\ \mu\text{m} (10 micro-inches) or better.
2. Eliminating Internal Dead-Legs and Cavities
A traditional 2-way solenoid valve body often contains internal threaded ports or secondary chambers where fluid can stagnate. In high-purity applications, these stagnant pockets are known as dead-legs.
- The Problem: In a dead-leg, fluid exchange is driven solely by slow molecular diffusion rather than forced convection. During Sterilization-in-Place (SIP) cycles using pure steam (121^\circ\text{C} to 135^\circ\text{C}), these trapped pockets may fail to reach the required temperature and sterilization time, leaving behind viable spores or chemical residues.
- The Engineering Solution: Ultra-clean 2-way valves utilize sweep-body geometries, orbital weld ends (instead of NPT threads), and zero-dead-volume cavity-free seat designs. The internal flow path is continuously sloped and streamlined to ensure complete drainage when the system is evacuated.
3. Elastomer Purity: Preventing Leachables and Outgassing
The sealing element is often the weakest link in a high-purity fluid loop. Standard elastomers contain plasticizers, fillers, and curing agents that can leach into process media, causing chemical contamination, taste alteration, or foaming in pharmaceutical products.
To maintain ultra-clean standards, valves must be specified with certified high-purity polymers:
- USP Class VI and FDA Compliance: Elastomers such as EPDM, PTFE, or modified Perfluoroelastomers (FFKM) must be certified to USP Class VI standards, proving they are non-toxic and non-hemolytic.
- Low Outgassing in Gas Delivery: In semiconductor gas cabinets, elastomers must exhibit minimal outgassing under high vacuum to prevent moisture or hydrocarbon contamination from degrading specialty reactive gases (e.g., silane or nitrogen trifluoride).
Sourcing Specs for Ultra-Clean 2-Way Valves
When compiling procurement guidelines for semiconductor, pharmaceutical, or biotech fluid loops, mandate these high-purity engineering specifications:
| Engineering Variable | Sourcing Requirement | Purity Justification |
|---|---|---|
| Wetted Surface Finish | Mechanically Polished & Electropolished (R_a \le 0.25\ \mu\text{m}) | Eliminates micro-asperities where bacteria and particulate matter can anchor. |
| End Connection Style | Automatic Orbital Weld Stubs (Extended Tube OD) | Replaces fluid-trapping NPT threads with smooth, crevice-free permanent welds. |
| Elastomer Chemistry | USP Class VI / FDA-Compliant Virgin PTFE or EPDM | Prevents chemical leaching, extractables, and particulate shedding into the process stream. |
Conclusion
Ultra-clean fluid automation requires an uncompromising focus on surface micro-finish, internal geometry, and material purity. In high-purity industries, treating a 2-way solenoid valve as a standard hardware component risks catastrophic batch contamination, bio-burden growth, and yield loss. By specifying electropolished R_a \le 0.25\ \mu\text{m} surfaces, zero-dead-leg flow paths, and USP Class VI certified polymers, you ensure that your fluid control infrastructure delivers absolute cleanliness, sterility, and process reliability.
