Managing the Invisible Backpressure: How 2-Way Solenoid Valves Handle High Exhaust and Venting Line Dynamics

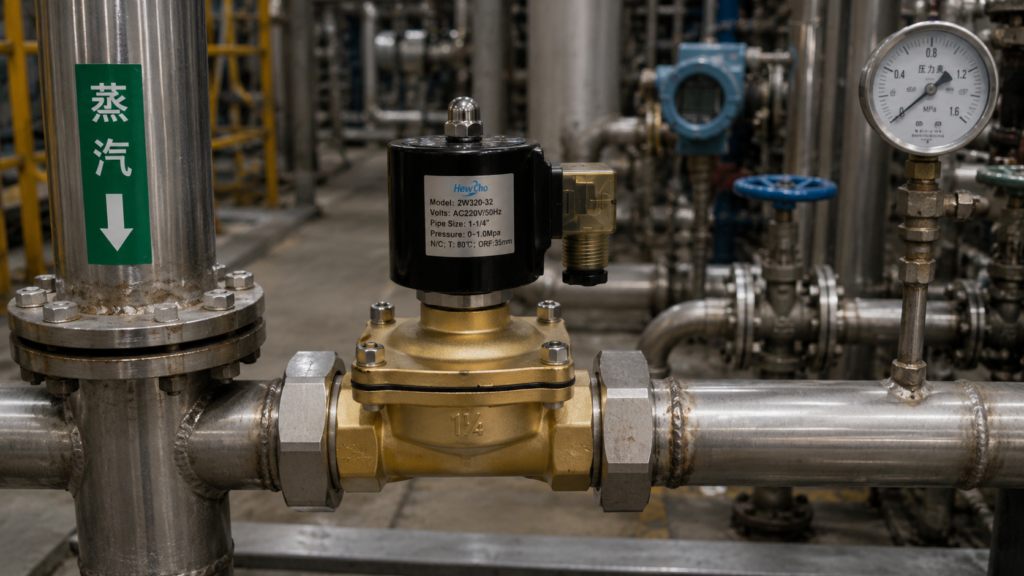

Solenoid valve

Throughout this automated technical series, we have dissected the internal anatomy of 2-way solenoid valves under extreme conditions—ranging from cryogenic deep-freezes and thermal steam loops to low-power latching circuits and magnetic memory retention. Today, we focus on a critical, often miscalculated system-level pressure dynamic: Exhaust Backpressure and High-Flow Venting Lines.
When designing automated pneumatic or hydraulic exhaust systems, engineers frequently rely on a Normally Open (N/O) or Normally Closed (N/C) 2-way solenoid valve to act as a rapid dumping or venting mechanism. However, when a high-pressure fluid or gas is suddenly vented into an exhaust manifold or a long drainage pipe, a hidden barrier emerges: backpressure. If a 2-way valve is forced to operate against a high downstream pressure build-up, its internal mechanical balance shifts, often causing the valve to stall, leak, or fail to open. Here is the technical breakdown of how backpressure affects 2-way valve mechanics and how to source the correct architecture for venting applications.
1. The Physics of the Backpressure Trap
To understand why backpressure paralyzes standard valves, we must look at how fluid forces balance inside the valve body.
In a standard Normally Closed (N/C) 2-way solenoid valve, the system fluid enters through the inlet port and sits underneath or around the plunger seal. The outlet port, under normal conditions, is connected to a low-pressure line or vented directly to the atmosphere (0 Bar). The electromagnetic coil is calibrated to lift the plunger against this predictable, one-way directional pressure.
However, if the outlet line is restricted—due to long pipe runs, silencers, filters, or shared exhaust manifolds—the exiting fluid cannot escape fast enough. The pressure at the outlet port spikes dramatically. This creates a reverse pressure differential:

$$P_{\text{outlet}} > P_{\text{inlet}}$$‬‭‬
When this happens, the high backpressure pushes down on top of the internal seal or diaphragm, working against the magnetic lift of the coil. If the backpressure exceeds the physical spring or magnetic lifting limits of the valve, the plunger will be pinned downward against its seat. Even if the coil is fully energized, the valve will remain locked shut, causing a dangerous backup in your automated process.
2. Choosing the Right Weapon: Direct-Acting vs. Balanced Poppet
If your pipeline layout dictates that your 2-way valve must exhaust into a pressurized manifold, you cannot use a standard pilot-operated or un-isolated diaphragm valve. You must select one of two specialized mechanical configurations:
High-Power Direct-Acting Valves (For Low Backpressure Tolerances)
Because direct-acting valves use raw magnetic muscle to pull the plunger open, they can tolerate minor backpressure spikes better than pilot-operated designs (which rely completely on a positive pressure drop to lift the main diaphragm). However, if the backpressure rises too high, even a direct-acting valve will eventually stall unless it is equipped with an oversized, high-wattage coil.
Balanced Poppet Valves (The Industrial Venting Standard)
For high-flow venting systems where backpressure fluctuates wildly, engineers specify a Balanced Poppet 2-Way Valve.
In a balanced poppet design, the internal shaft passes through a secondary chamber or seal. The valve is engineered so that the incoming fluid pressure and the exiting backpressure act on identical, opposing surface areas inside the valve geometry. Because the forces pushing up and pushing down are completely equalized, the fluid pressure effectively neutralizes itself.
The electromagnetic coil only has to overcome the tension of the internal return spring to actuate the valve, allowing it to open and close flawlessly regardless of severe backpressure spikes at the outlet port.
3. Sourcing Metrics for Exhaust Systems
When auditing the spec sheets of global valve manufacturers for venting skids, procurement managers must look past basic port threads and prioritize three specific venting metrics:

  • Maximum Backpressure Rating: Premium manufacturers will explicitly list the maximum allowable pressure at the outlet port. If this line is blank, assume the valve cannot handle more than 10% to 20% of its rated inlet pressure as backpressure.
  • Flow Coefficient (

$C_v$

$K_v$

$C_v$

  • Shared Manifold Isolation: If multiple 2-way valves exhaust into a single main collection pipe, specify valves equipped with internal or external check valves to prevent backpressure from one active line from back-feeding through an inactive valve and cross-contaminating another system loop.

Conclusion
An open exhaust path is never truly empty. When high-velocity gases or liquids are forced into a restricted drain line, backpressure acts as an invisible brake on your automated machinery. By accurately calculating downstream pressure constraints, installing balanced poppet configurations, and sizing your valve’s flow coefficient for peak venting bursts, you eliminate the risk of stalled automation and guarantee safe, predictable fluid depressurization.
