Yesterday, we investigated the high-velocity fluid dynamics of jet shearing and cavitation erosion at the valve seat, mapping out how radiused orifice geometries and Stellite hardfacing protect pipelines from internal material degradation. Today, we transition from room-temperature high-pressure loops to the extreme thermal and thermodynamic boundaries of Two-Phase Cryogenic Fluid Management.

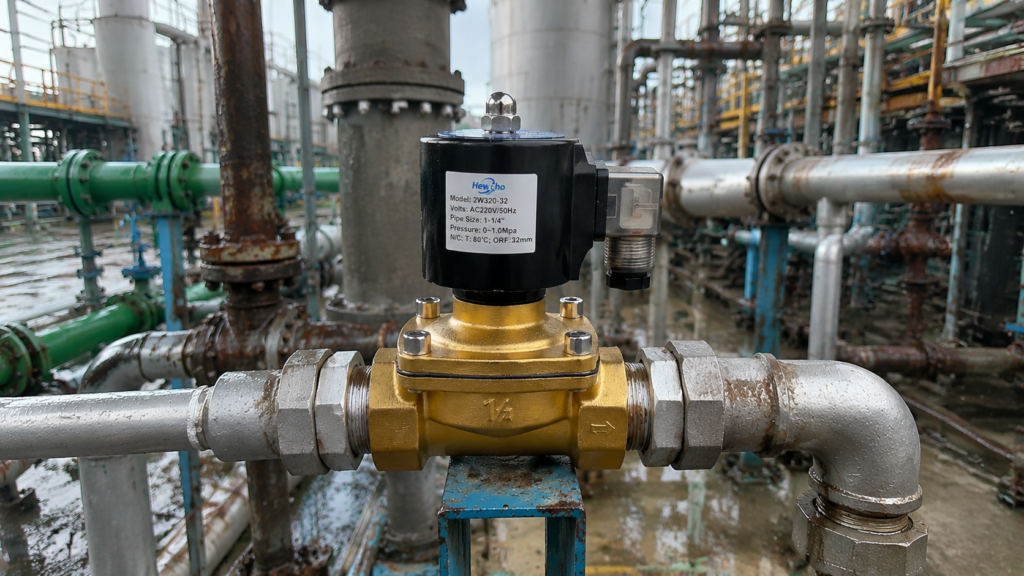

In aerospace launch pads, superconductor cooling loops, and liquefied natural gas (LNG) distribution networks, automated 2-way solenoid valves must handle liquids at temperatures plunging below $-150^\circ\text{C}$ ($-238^\circ\text{F}$). When a cryogenic liquid—such as liquid nitrogen ($\text{LN}_2$), liquid oxygen ($\text{LOX}$), or liquid helium ($\text{LHe}$)—flows through an automated valve, it does not behave like a standard stable liquid.
Because these fluids operate micro-degrees away from their boiling points, the slightest environmental heat leak or localized pressure drop triggers an immediate phase change, transforming a pure liquid stream into a highly volatile, turbulent two-phase liquid-vapor mix. Here is the thermodynamic breakdown of two-phase cryogenic flow and how to specify 2-way solenoid valves to survive it.
1. The Thermodynamics of Cryogenic Flash Boiling
To understand how a cryogenic fluid behaves inside a 2-way valve, we must evaluate the concept of boiling point proximity.
Unlike water or hydraulic oils, cryogenic liquids exist in a state of permanent thermal tension with their containment hardware. The metal valve body itself, even when insulated, continuously absorbs minute amounts of ambient radiant heat.
When a Normally Closed (N/C) cryogenic 2-way valve opens, the fluid experiences a sharp localized drop in pressure as it clears the valve seat orifice. Because the fluid is already at its saturation temperature, this pressure drop acts as a thermodynamic trigger. The fluid instantly crosses its saturation line, causing a portion of the liquid to flash into gas bubbles—a phenomenon known as Flash Boiling.
The Two-Phase Flow Impedance
Once flash boiling occurs, the internal fluid dynamics become chaotic. The volume of the fluid expands exponentially as it transitions from liquid to gas. This massive volume surge chokes the valve orifice, creating an aerodynamic barrier that severely restricts the remaining liquid from passing through. This condition, known as vapor lock or two-phase flow impedance, causes the valve’s actual flow coefficient ($C_v$) to plunge far below its calculated liquid rating, starving downstream systems.
2. Structural Failures: Thermal Shock and Shrinkage Differential
Beyond the aerodynamic flow choking, the physical components of the 2-way valve face extreme mechanical stresses during cool-down cycles:
- Cryogenic Seal Embrittlement: Standard industrial elastomers like NBR, EPDM, and even high-performance Viton (FKM) hit their glass transition temperatures long before reaching cryogenic scales. At
$-196^\circ\text{C}$
$\text{LN}_2$
- The Dimensional Shrinkage Trap: Metals contract as they cool. A 2-way solenoid valve utilizes a stainless steel plunger sliding inside a stainless steel armature tube. However, if the plunger is machined from a slightly different alloy grade than the tube (e.g., 430FR vs. 316), they will shrink at mismatched rates. At cryogenic temperatures, the clearance gap can compress to zero, permanently seizing the plunger mid-stroke and triggering immediate AC coil burnout.
3. Cryogenic Engineering: Extended Stems and Fluoropolymer Barriers
To eliminate two-phase flow disruptions and protect structural valve integrity, cryogenic 2-way solenoid valves abandon standard configurations in favor of specialized thermodynamic architectures:
The Extended Bonnet Design (Vapor Barrier Extension)
To protect the electrical coil and armature assembly from freezing, cryogenic valves utilize an extended bonnet tube.
This tube positions the electromagnetic coil block several inches above the cold pipeline. The liquid cryogenic fluid enters the lower valve body, but as it tries to migrate up the extended bonnet toward the warm coil, it absorbs ambient heat and vaporizes.
This creates a permanent, stagnant pocket of insulated gas trapped inside the top of the tube. This gas pocket acts as a natural thermal barrier, keeping the delicate coil windings and upper static seals at a safe, near-ambient temperature while the lower valve body handles liquid at $-196^\circ\text{C}$.
Kel-F (PCTFE) and Spring-Energized Sealing
To replace brittle rubber seals, cryogenic 2-way valves utilize specialized fluoropolymers:
- PCTFE (Kel-F): Possesses outstanding mechanical rigidity, zero porosity, and retains its impact toughness down to absolute zero, making it the premier material for direct-acting valve seats.
- Spring-Energized PTFE Seals: For dynamic piston joints, engineers deploy U-shaped PTFE jackets backed by an internal stainless steel finger spring. As the temperature drops, the metal spring maintains continuous outward radial force, compensating for plastic thermal contraction and ensuring a bubble-tight external seal.
Sourcing Specs for Multi-Phase Cryogenic Loops
When compiling procurement guidelines or engineering bills of materials for liquefied gas infrastructure or aerospace test cells, enforce these strict cryogenic thresholds:
| Technical Performance Metric | Sourcing Requirement | Thermodynamic Justification |
|---|---|---|
| Operational Temperature | Rated down to -196^\circ\text{C} or -269^\circ\text{C} | Ensures all internal metallurgy is cryogenic-stabilized to prevent low-temperature structural fracturing. |
| Seat Construction | PCTFE (Kel-F) or Virgin PTFE Discs | Eliminates elastomer glass-transition failures; resists impact deformation under thermal shock. |
| Mounting Orientation | Vertical / Coil Upward Position | Critical to ensuring the vapor barrier gas pocket stays trapped inside the extended bonnet tube via natural buoyancy. |
Conclusion
Cryogenic automation requires looking past standard fluid tables. In sub-zero liquid lines, treating a cryogen like regular water ignores the volatile phase-change physics of flash boiling and two-phase choke. By specifying 2-way solenoid valves engineered with extended vapor bonnets, utilizing PCTFE solid-seating matrices, and deploying spring-energized polymer packings, you isolate your electrical signals from the extreme cold—ensuring safe, predictable, and vapor-lock-free flow control across the world’s most demanding thermal boundaries.
