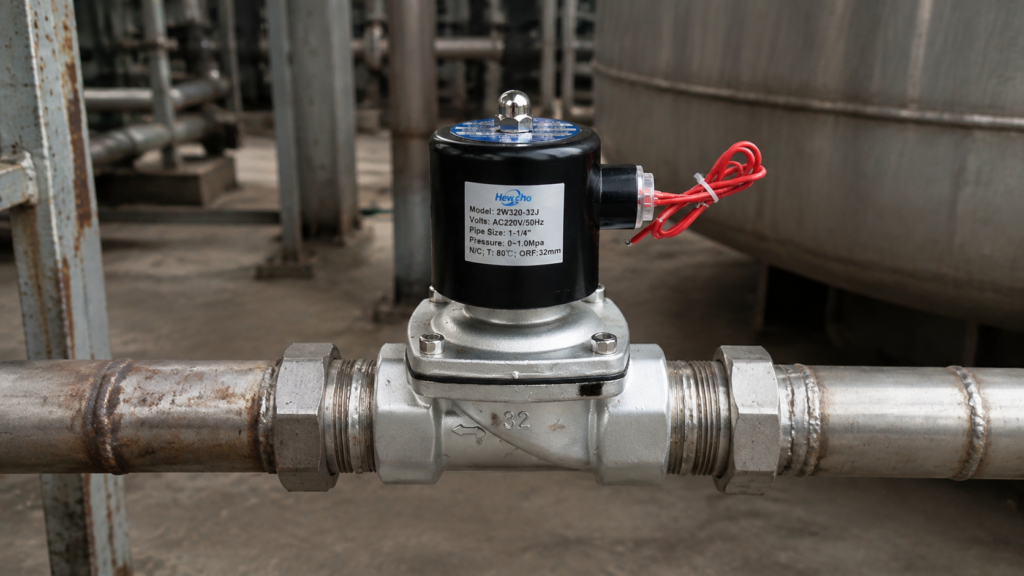

Yesterday, we discussed advanced thermal-fluid coupling, analyzing how flashing, vapor lock, and two-phase flow instabilities impact cryogenic and high-temperature 2-way solenoid valves. Today, we advance from thermodynamic phase boundaries to molecular-level containment, exploring the rigorous mechanical engineering required to achieve absolute zero-leakage performance in high-pressure, high-purity 2-Way Solenoid Valves.

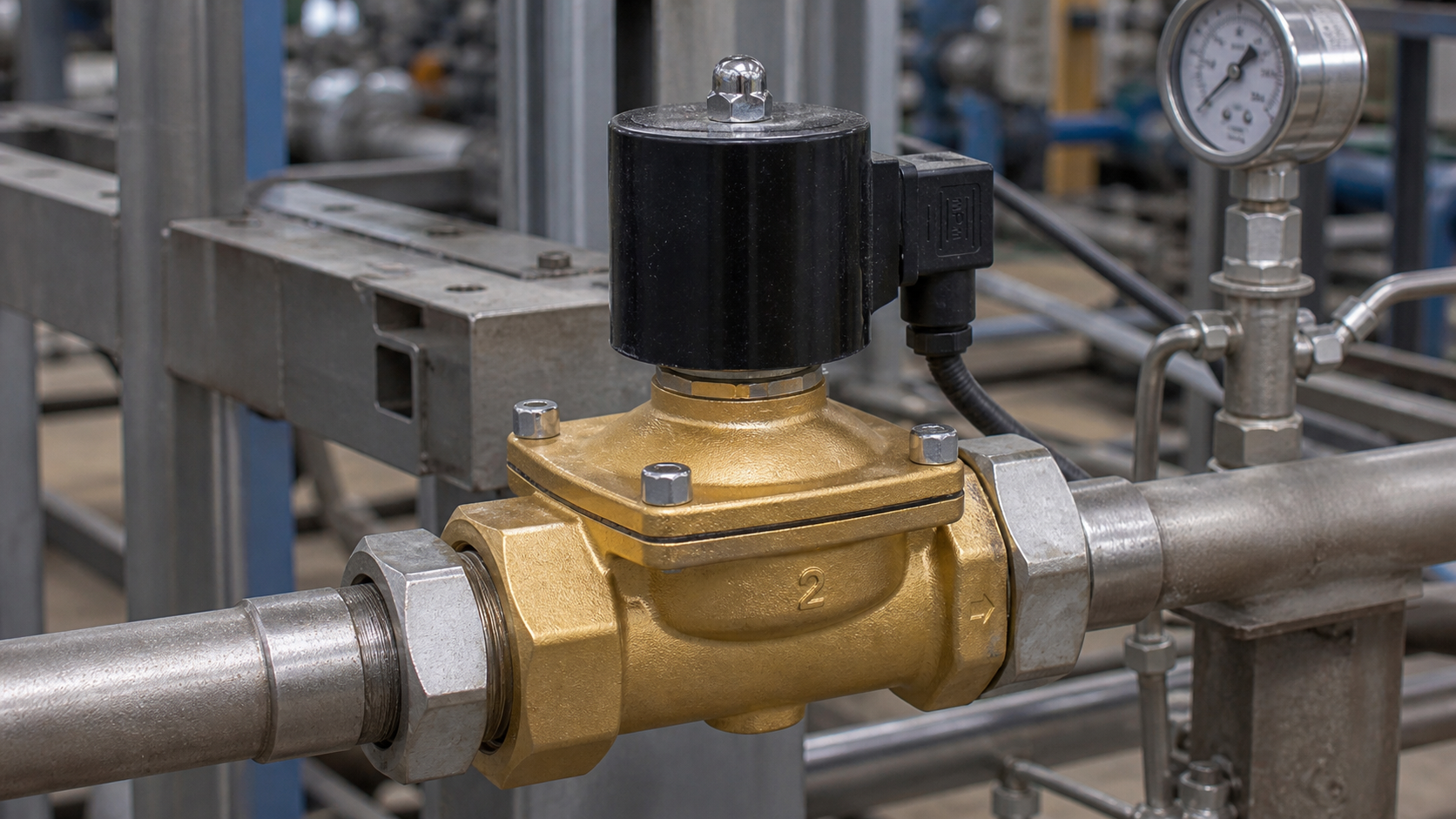

In critical industrial applications—such as nuclear coolant monitoring, toxic gas cylinder filling skids, and high-purity medical oxygen lines—a standard “bubble-tight” rating (often measured as a few cubic centimeters per minute) is entirely inadequate. True zero-leakage requires completely eliminating internal seat bypass and external atmospheric migration under extreme cyclic fatigue. Here is the engineering blueprint for specifying and manufacturing zero-leakage 2-way valve architectures.
1. The Tribology of Micro-Seating and Elastic Recovery
Achieving absolute zero-leakage begins at the microscopic interface where the moving plunger tip (or disc) meets the fixed valve orifice. When a valve closes, the kinetic energy of the plunger must be absorbed without deforming the seat geometry or causing micro-bounce.
- The Elastomeric Deformation Limit: In soft-seated valves, standard elastomeric discs (like FKM or EPDM) rely on elastic deformation to conform to microscopic surface roughness pits on the metal seat. However, under high cycle frequencies or elevated pressures, these elastomers suffer from permanent set and extrusion, leading to gradual seal degradation.
- The Metal-to-Metal Lapped Interference Fit: For extreme pressure or aggressive chemical services where elastomers cannot be used, zero-leakage is achieved through precision optical lapping. The plunger tip and the metal seat are precision-machined and hand-lapped together using abrasive diamond compounds until their mating contact surfaces share an identical geometric profile with an R_a \le 0.05\ \mu\text{m}, creating a molecular barrier against gas migration.
2. Eliminating External Path Leaks: Hermetically Sealed Canister Designs
Internal seat leakage is only half the battle; external leakage—where process media escapes past the static joints of the valve body into the atmosphere—presents severe safety and environmental risks.
Traditional solenoid valves utilize static O-rings or flat gaskets at the base of the armature guide tube to seal the internal fluid chamber from the outside world. Over years of thermal cycling and vibration, these static seals harden and leak.
- The Hermetically Welded Canister Architecture: To achieve absolute zero external leakage, high-reliability 2-way valves abandon removable threaded armature tubes. Instead, the lower guide tube assembly is permanently TIG or laser-welded directly to the valve body, creating a single, continuous, hermetically sealed metal canister.
- The Benefit: With zero mechanical joints or static O-rings on the pressure boundary, external atmospheric leakage is physically impossible, making these valves mandatory for helium mass-spectrometer leak-tested vacuum and high-pressure gas systems.
3. Pressure-Energized Lip Seals and Actuation Optimization
In high-pressure pneumatic and hydraulic applications, relying solely on the return spring force to maintain seal contact is insufficient. As system pressure (P_1) rises, it can lift the plunger away from the seat if the electromagnetic or spring force is overcome.
To counteract this, advanced zero-leakage designs incorporate pressure-energized dynamic lip seals:
- The Self-Sealing Principle: The seal is engineered with a U-shaped cross-section facing the high-pressure media. As line pressure increases, fluid enters the open cavity of the seal, physically forcing the lips outward against the guide walls and the plunger face. The higher the system pressure, the tighter the seal grips, ensuring absolute zero leakage across dynamic pressure surges.
Technical Sourcing Specs for Zero-Leakage Systems
When compiling procurement specifications for 2-way solenoid valves destined for hazardous, toxic, or ultra-pure fluid loops requiring absolute containment, enforce these manufacturing standards:
| Performance Metric | Sourcing Requirement | Engineering Justification |
|---|---|---|
| External Containment | Hermetically Welded Armature Tube (Laser/TIG Monoblock) | Eliminates static O-ring joints, guaranteeing zero atmospheric media migration. |
| Seat Sealing Technology | Optically Lapped Metal-to-Metal or Spring-Energized PTFE | Prevents micro-seepage and resists high-pressure extrusion and cyclic fatigue. |
| Leakage Testing Standard | Helium Mass Spectrometer Testing (\le 10^{-9}\ \text{atm}\cdot\text{cc/sec}) | Provides rigorous quantitative verification of absolute zero-leakage compliance. |
Conclusion
Absolute containment is the benchmark of elite fluid control engineering. In high-risk industrial environments, treating minor internal seepage or static joint weeping as acceptable maintenance tolerances invites environmental contamination, safety hazards, and catastrophic loss of pressure. By implementing hermetically welded monoblock canisters, optically lapped metal-to-metal seating, and pressure-energized lip geometries, you engineer 2-way solenoid valves capable of maintaining uncompromised, zero-leakage integrity across millions of cycles in the world’s most demanding applications.
