Yesterday, we discussed the critical role of fail-safe architectures and how redundancy—specifically series (AND) and parallel (OR) valve configurations—mitigates the risk of single-point failure in safety-critical fluid networks. Today, we explore the next level of sophisticated automation: Master-Slave Valve Architectures.

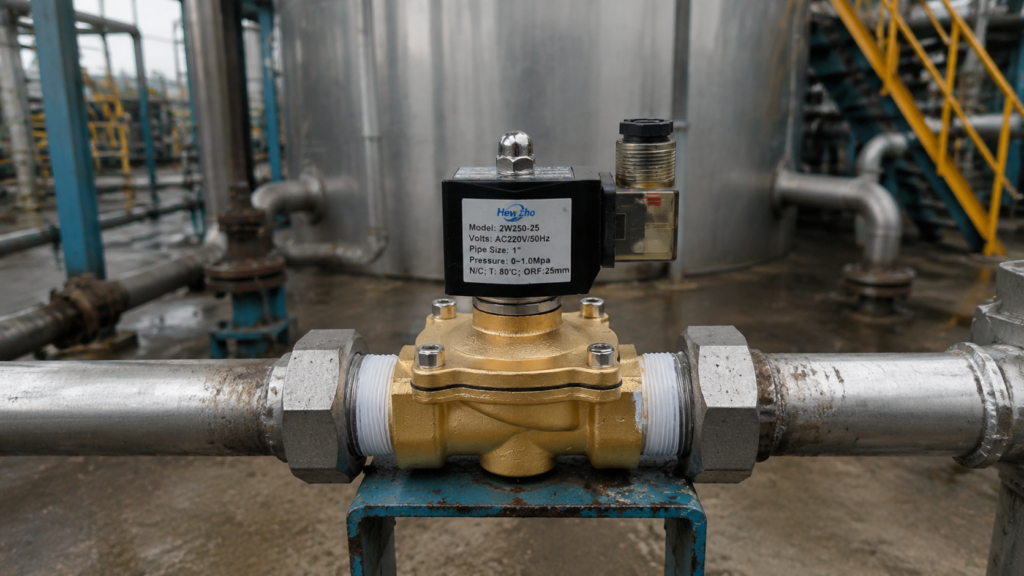

In high-stakes industrial environments like semiconductor gas supply, pharmaceutical blending, and cryogenic propellant routing, a single valve—no matter how reliable—cannot provide the level of diagnostic confidence required for “zero-leak” safety. Master-Slave architectures represent the pinnacle of redundant fluid control, where two 2-way solenoid valves operate in a synchronized, cross-checked loop to guarantee absolute process integrity.
1. The Architecture of Synchronization
A Master-Slave system is not merely two valves acting in parallel. It is an integrated diagnostic circuit where the “Master” valve handles the primary flow control, while the “Slave” valve acts as an intelligent, independent verification gate.
Logic Flow
- State Verification: Both valves are equipped with independent position sensors (Hall Effect or inductive limit switches) that report the absolute state of the plunger (Open/Closed).
- Cross-Check Logic: When the PLC commands a state change, it monitors the feedback from both valves. If the Master valve commands “Open” but the Slave valve sensor fails to report an “Open” state within a millisecond threshold, the PLC immediately triggers an emergency halt.
- Pressure-Decoupled Sealing: In high-pressure applications, the Slave valve often serves as a secondary bubble-tight seal. By placing the Slave in series with the Master, the Slave experiences a lower pressure differential (\Delta P), significantly reducing the wear on its internal seat and ensuring that if the Master valve suffers seat erosion, the Slave remains pristine.
2. Managing the “Silt-Lock” Conflict
The primary challenge of a Master-Slave setup is the risk of Asymmetric Silt-Lock. If the Master valve operates more frequently than the Slave valve, internal fluid contaminants (micro-silt) can settle inside the Slave valve’s guide tube, eventually causing it to seize.
To prevent this, sophisticated control software utilizes Valve Rotation (Duty Cycling):
- The control logic periodically swaps the role of the valves. During the first batch, Valve A is the Master; during the second batch, Valve B is promoted to Master.
- This ensures that neither valve experiences prolonged periods of static, closed-loop stagnation, effectively “exercising” both internal mechanisms and preventing the formation of silt-lock or stiction matrices.
3. Advanced Failure Detection: Differential Sensing
A Master-Slave architecture allows for the implementation of Differential Leakage Detection. By installing a small pressure-transducer port in the “dead volume” space between the two valves, the PLC can detect an internal seat leak in real-time.
- Scenario: Both valves are closed. If the pressure in the intermediate port begins to rise, the system knows immediately that either the Master or the Slave valve is experiencing internal seat bypass.
- The Benefit: Unlike a single-valve setup, the system can autonomously identify which valve is leaking based on the pressure ramp profile, enabling targeted maintenance rather than a blind, system-wide overhaul.
Sourcing Specs for Master-Slave Integration
When sourcing components for high-reliability, Master-Slave fluid control skids, mandate these integrated specifications:
| Engineering Variable | Sourcing Requirement | Reliability Justification |
|---|---|---|
| Position Feedback | Dual-Channel Inductive Feedback | Provides high-confidence, non-contact state verification for both valve states. |
| Manifold Integration | Monoblock / Integrated Body Design | Eliminates external threaded fittings between the Master and Slave valves, reducing potential leak points. |
| Logic Capability | IO-Link Diagnostic Compatibility | Allows the valves to report diagnostic data to the Master controller for Duty Cycling and Leak Detection. |
Conclusion
Master-Slave architectures represent a shift from treating 2-way solenoid valves as individual components to treating them as a cohesive fluid-control subsystem. By integrating synchronized duty-cycling to prevent silt-lock, and implementing differential pressure sensing to detect internal seat bypass, you create a fluid loop that is not only redundant but self-aware. This architecture ensures that even in the most demanding industrial processes, your pipeline remains secure, leak-free, and optimally maintained.
