In an automated manufacturing plant, food processing facility, or chemical refinery, equipment downtime is measured in thousands of dollars per minute. When designing these continuous production lines, engineers look for components that can be turned on and left on for days, weeks, or months at a time without a single second of interruption.

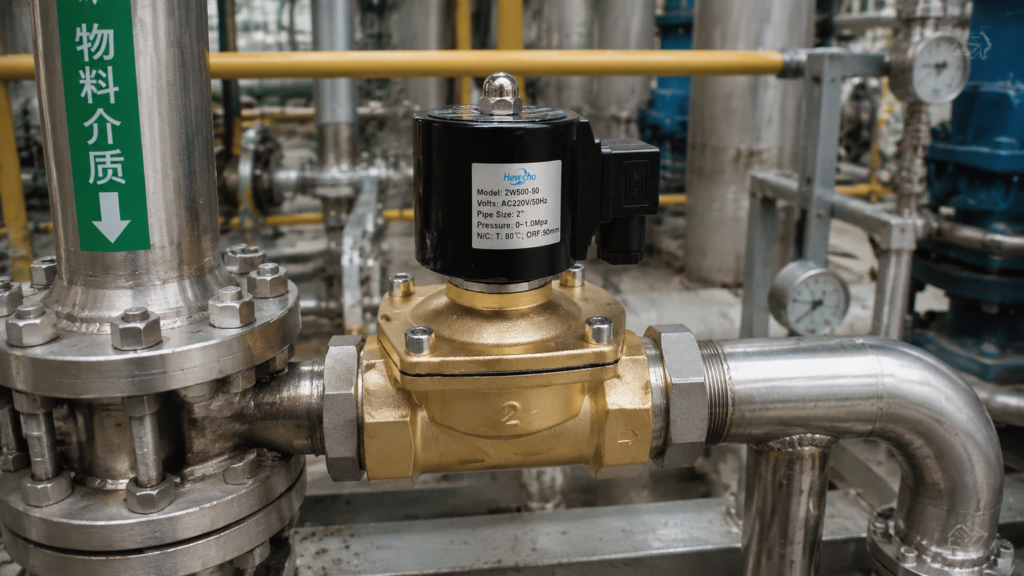

When it comes to routing fluids or gases in these settings, the Normally Closed (N/C) 2-way solenoid valve is the default gatekeeper. However, forcing a standard automated valve to stay open continuously introduces severe thermal and mechanical stress to its electrical components.
If your machinery requires a 2-way valve to remain energized for extended shifts, you must specify a Continuous-Duty (100% ED) rated valve. Here is the technical breakdown of how these heavy-duty components are engineered to survive the heat of 24/7 automation.
1. The Physics of Coil Heat Generation
To understand why a continuous-duty rating matters, you must understand what happens inside the valve’s electromagnetic coil when it is powered on.
A solenoid coil is essentially a massive spool of copper wire wrapped around a central core. When electricity passes through this wire, it creates a magnetic field that pulls the internal steel plunger up, opening the valve.
However, copper wire possesses natural electrical resistance. According to Joule’s Law of Heating, as electrical current flows through a resistor, a portion of that electrical energy is inevitably converted into thermal energy (heat):
$$P = I^2R$$
Where $P$ is power dissipated as heat, $I$ is current, and $R$ is resistance.
The longer a valve stays energized, the more heat builds up inside the plastic housing. In cheap, intermittent-duty valves, this heat will rapidly accumulate until the internal copper wire melts, causing a catastrophic short circuit and instantly blowing the system’s fuses.
2. Anatomy of a 100% ED Continuous-Duty Coil
When a 2-way valve is rated for 100% ED (Einschaltdauer / Duty Cycle), it means the manufacturer has specifically engineered the coil to reach thermal equilibrium. This means the coil will heat up to a certain safe temperature and then plateau, dissipating heat into the ambient air at the exact same rate it generates it, allowing it to stay turned on indefinitely.
Manufacturers achieve this continuous-duty durability through three engineering upgrades:
- Premium Class H Insulation: Continuous-duty coils are wound with high-purity copper wire coated in advanced, high-temperature varnish and potted in heavy-duty epoxy resin. They carry a Class F (155°C) or Class H (180°C) insulation rating, allowing the electrical “brain” of the valve to cook in high temperatures without losing its electrical isolation.
- Optimized Wire Gauge and Windings: To reduce the heat generated (
$I^2R$
- Metal Heat-Dissipation Shrouds: Premium 100% ED coils are often housed in stamped steel or aluminum enclosures rather than raw plastic. The metal acts as a natural heatsink, pulling warmth away from the copper core and releasing it into the facility’s ambient air.
3. The Mechanical Stress of Continuous Hold
Heat does not just threaten the electrical wiring; it also alters the mechanics of the valve body.
When a 2-way valve stays energized for weeks, the internal return spring is held completely compressed, and the plunger is held suspended at the top of the armature tube. Over months of continuous holding, a low-quality spring can suffer from mechanical fatigue or stress relaxation, losing its tension. When the power is finally cut, the weakened spring may fail to push the plunger back down, preventing the valve from closing securely.
To counter this, continuous-duty 2-way valves utilize springs made from high-tensile stainless steel (such as AISI 302 or 316) that are specifically calibrated to retain their elastic memory even when held compressed under high temperatures for thousands of hours.
4. Operational Alternatives: Reversing the Failsafe
If your engineering audit reveals that a 2-way valve needs to remain open for 23 hours a day and only close for 1 hour, using a Normally Closed valve is highly inefficient. Even with a premium 100% ED coil, you are paying for electricity and generating heat for 95% of the day just to fight the internal spring.
The smarter design choice is to switch to a Normally Open (N/O) 2-way solenoid valve.
In an N/O configuration, the valve rests in the open position naturally, allowing fluid to flow 24/7 without drawing a single watt of electricity. The coil only energizes—and generates heat—during the rare 1 hour when you need to shut the pipeline down. This simple mechanical flip slashes your facility’s utility bills and extends the lifespan of your valve components by years.
Conclusion
Continuous 24/7 manufacturing demands components that refuse to fatigue. When sourcing 2-way solenoid valves for critical automation loops, never treat the coil as a secondary component. By verifying a 100% ED rating, insisting on Class H insulation, and matching the failsafe configuration (N/C vs. N/O) to your actual operational schedule, you ensure your pipelines remain open, your coils remain cool, and your facility remains entirely online.
